KST X0H8 V5 Micro Digital Metal Gear Servo

KST X0H8 V5 Micro Digital Metal Gear Servo

SKU: X0H8-V5

The KST 08 MG Servo features a high voltage capable motor & electronics, an oversized large 8mm output motor that provide great torque and high speed. Voltage input can be from 3.8V to 8.4V.


Version 5 incorporates updated firmware and electronics, allowing for an incredible amount of precision over the previous Version 3.



  • Micro size aluminum case
  • Full metal gears
  • Dual ball bearings
  • HV compatible
  • Lightning fast
  • 8mm Coreless motor



Operating Voltage: 3.8-7.4V

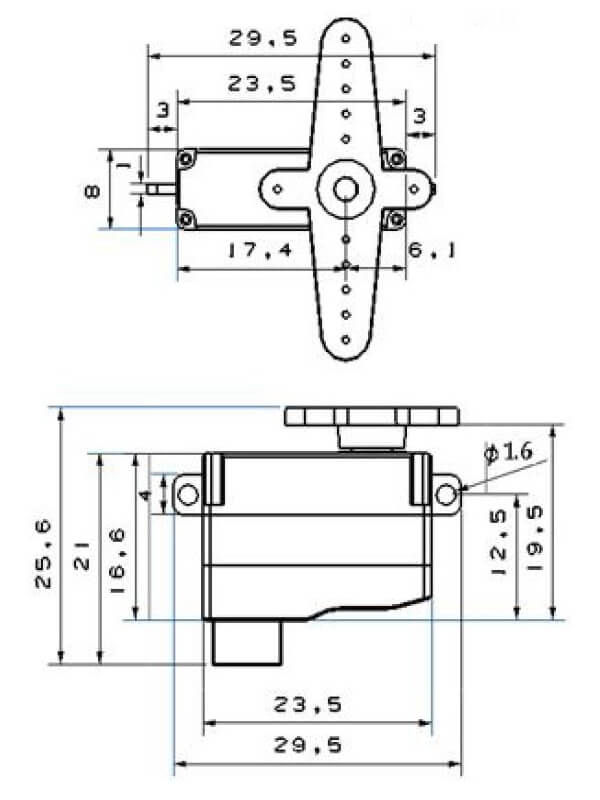

Size: 29.5x25x8mm (width x height x thickness)
Torque: 2.20kg.cm @ 6.0V; 2.80kg.cm @ 8.4V
Speed: 0.15sec/60° @ 6.0V; 0.09sec/60° @ 8.4V
Weight: 8.4g
Working Frequency: 1520us/333Hz, 800us - 2200us
Motor: Coreless
Ball Bearing: 2BB
