KST DS1509MG Low Profile digital servo

KST DS1509MG Low Profile digital servo


The KST DS1509MG is a high quality and very fast digital standard low profile servo with robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate resetting and therefore can be used in a variety of applications from bikes, cars, planes and helicopters.


Features :


  •  Coreless engine
  •  Metal gear unit
  •  Double ball bearing mounted



  • Technical Specs :

    Operatin voltage (max.) [V]: 7.4
    Torque[kg/cm]@4.8V: 8.5
    Torque[kg/cm]@6.0V: 10.7
    Torque[kg/cm]@7.4V: 12.8
    Torque[kg/cm]@8.4V: --
    Speed [s/60°]@4.8V: 0.1
    Speed [s/60°]@6.0V: 0.080
    Speed [s/60°]@7.4V: 0.070
    Speed [s/60°]@8.4V: --
    Breadth: 20.0
    Length: 40.5
    Height: 25.4
    Weight: 55.0
    Motor type: Coreless
    Frequency: 1520us/333Hz, 900us-2100us
    Gear: Metal
    Bearing: 2BB
    Spline: H25T/3F
    Type: Low-Profile
    Electronics: Digital
    Sensor: Potentiometer
    Waterproof: No
    Manufacturers: KST

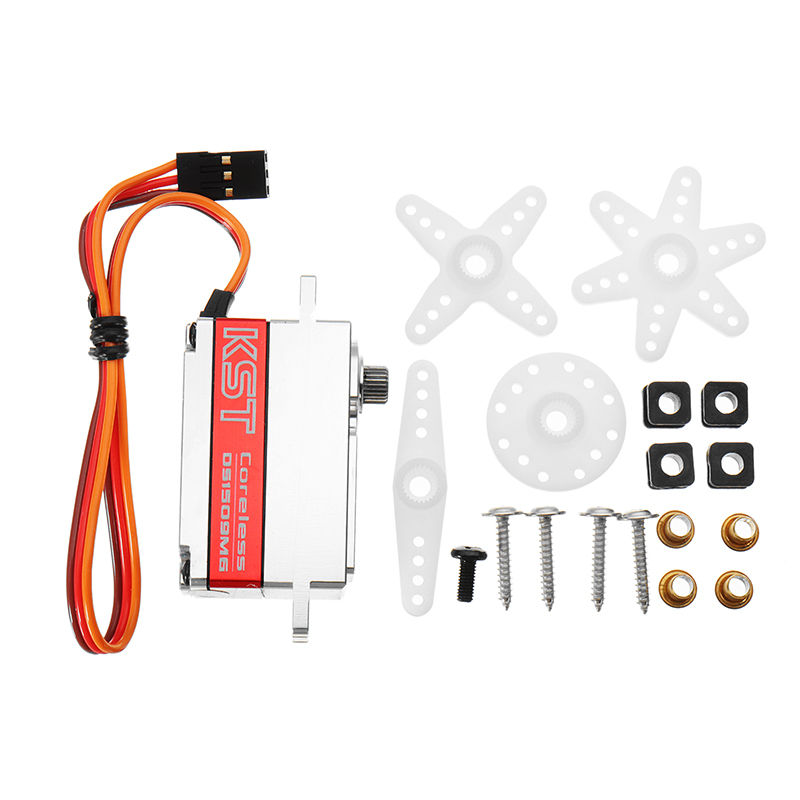

  • Contents

    •  1 x "Low-Profile" Servo KST DS1509MG
    •  various rudder horns plastic
    •  1 x rudder horn aluminium
    •   various fastening and securing screws
