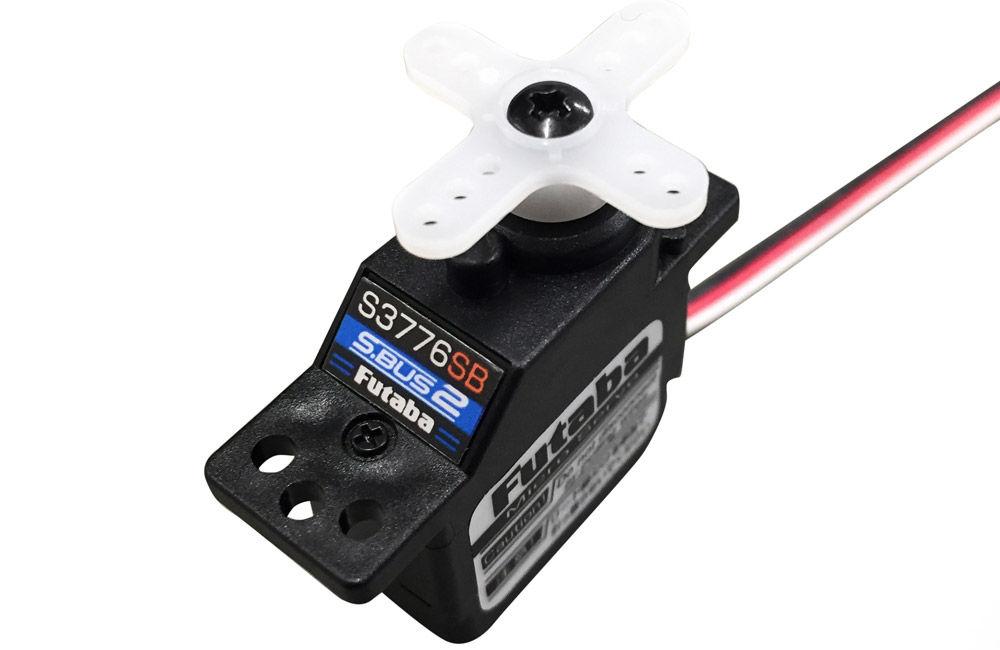

Futaba S3776SB S.Bus2 Micro Digital Metal Gear

Futaba S3776SB S.Bus2 Micro Digital Metal Gear

SKU: S3776SB


This is the Futaba S3776SB Micro Digital SBus2 Servo.




For small electric powered aircraft, This is a specific servo used for the Lightscale Jabber bikes for the front brake. Programmable and compatible with S.Bus and S.Bus2 systems
Metal output gear





S3776SB Micro Digital SBus2 Servo
0.79" (20mm) diameter 4-Point Horn
1.7" (42.5mm) diameter 4-Point Horn
Four 2x11 Mounting Screws





Rated Voltage: DC 4.8V - 5.2V
Operating Voltage: DC4.0 - 6.0V
Dimensions: 0.86 x 0.43 x 0.86" (21.8 x 11.0 x 21.9mm)
Weight: 0.35oz (10.0g)
4.8V 6.0V
Speed, sec/60°: 0.13 0.11
Torque: 27.8oz/in (2.0kg/cm) 33.3oz/in (2.4kg/cm)


Always use Futaba servo horns specifically designed for this micro
servo. Do not use conventional size horns with this servo.
